Custom PCB Design

Timeline4 WeeksKey Features57 integrated components, 3 power levels, easy configurability for future design accomodationToolsEasyEDA, Onshape

I built a custom PCB for an autonomous robot as part of a mechatronics class. The PCB integrated a microcontroller with 7 sensors, 3 motors, and 2 solenoids.

The PCB

The board has 57 unique components. I designed it to account for current draw, distinct voltage levels, and capacitance. I used EasyEDA and ordered the boards from a manufacturer, then soldered everything by hand.

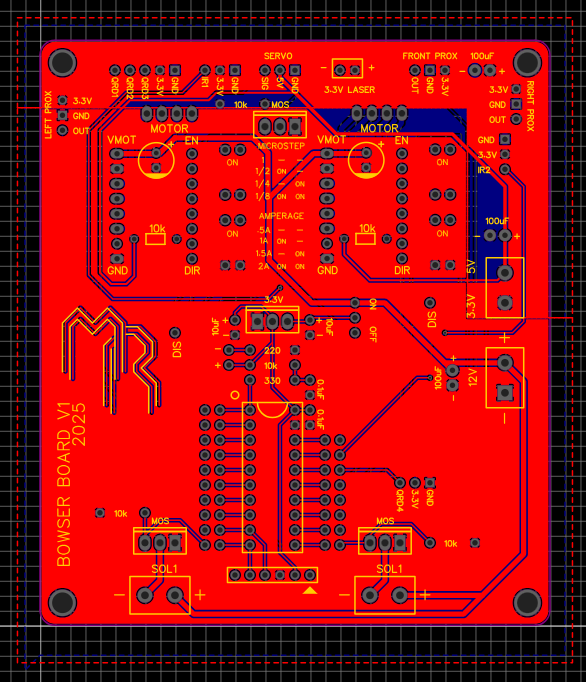

Schematic Top Layer
Schematic of top layer

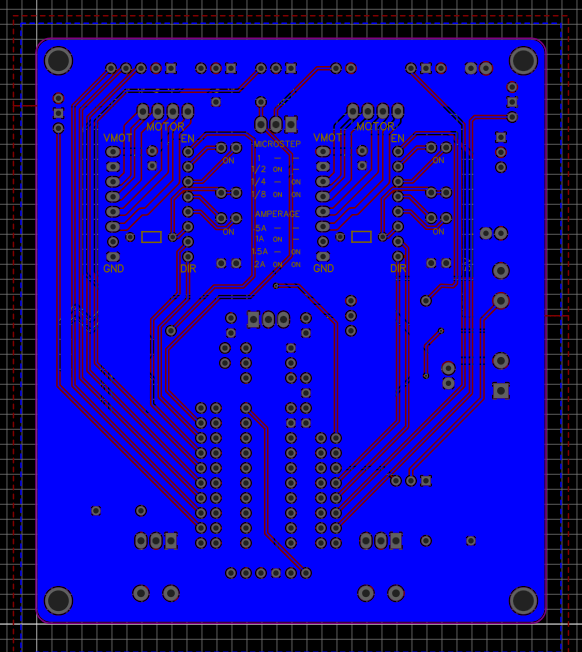

Schematic of bottom layer
Schematic of bottom layer

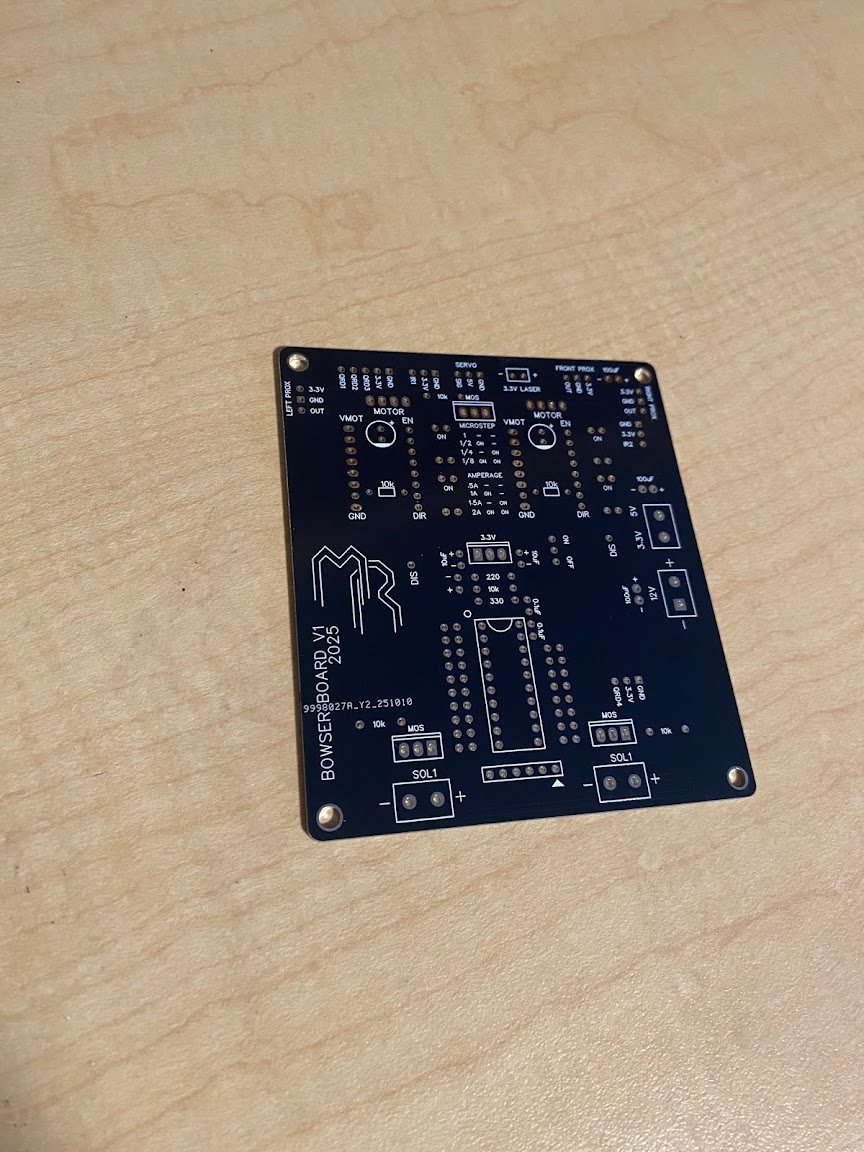

The bare board before soldering
The bare board before soldering

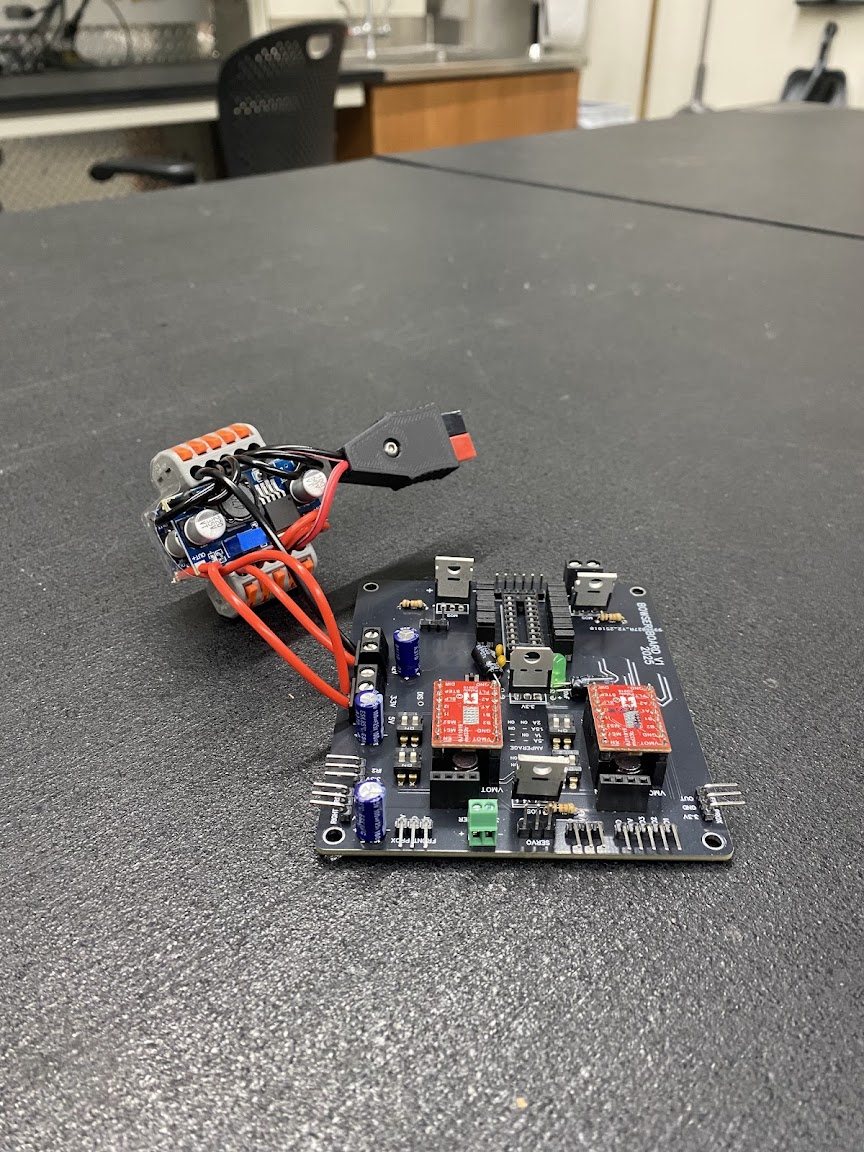

The board with the power converter connected
The board with the power converter connected

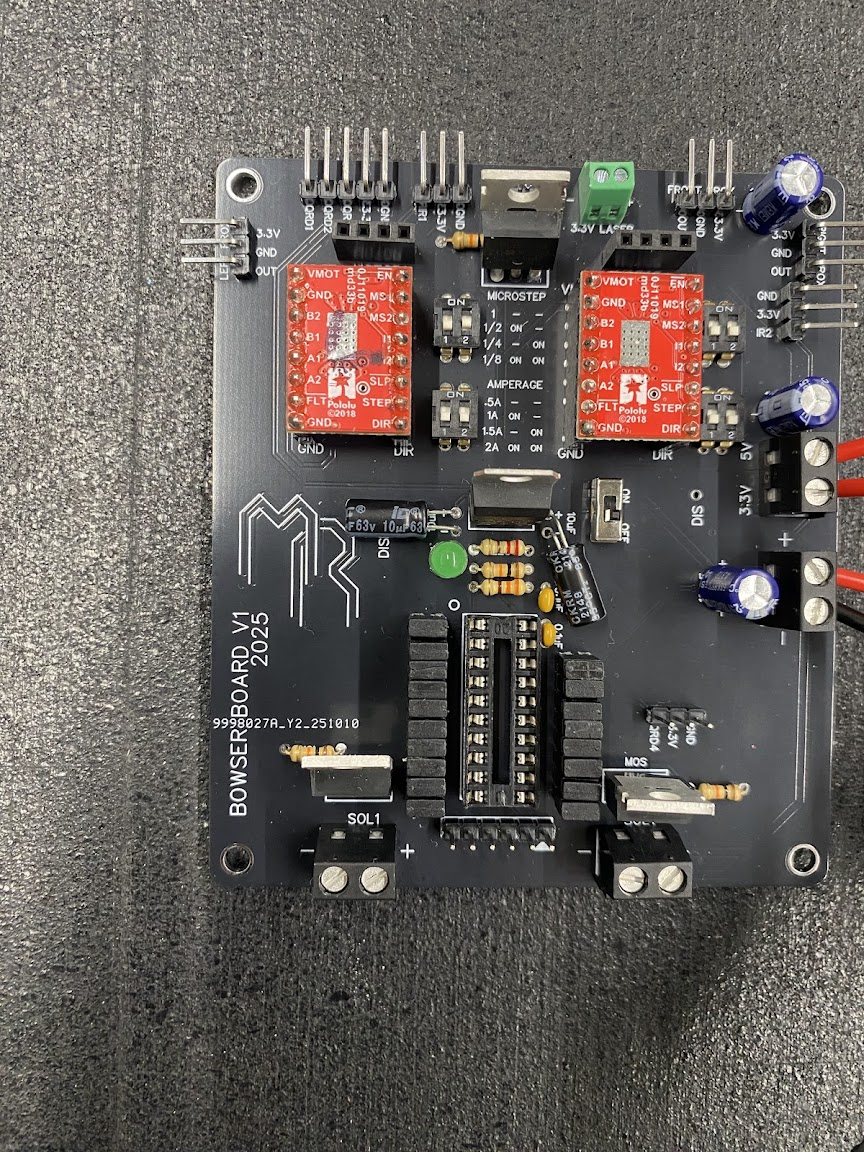

The fully assembled board
The fully assembled board

Beyond the board

I was in charge of the electronics systems and integration on my team. Along with the custom PCB, I designed an IR line following board, the solenoid ball drop system, and the PID control loop for our autonomous robot.

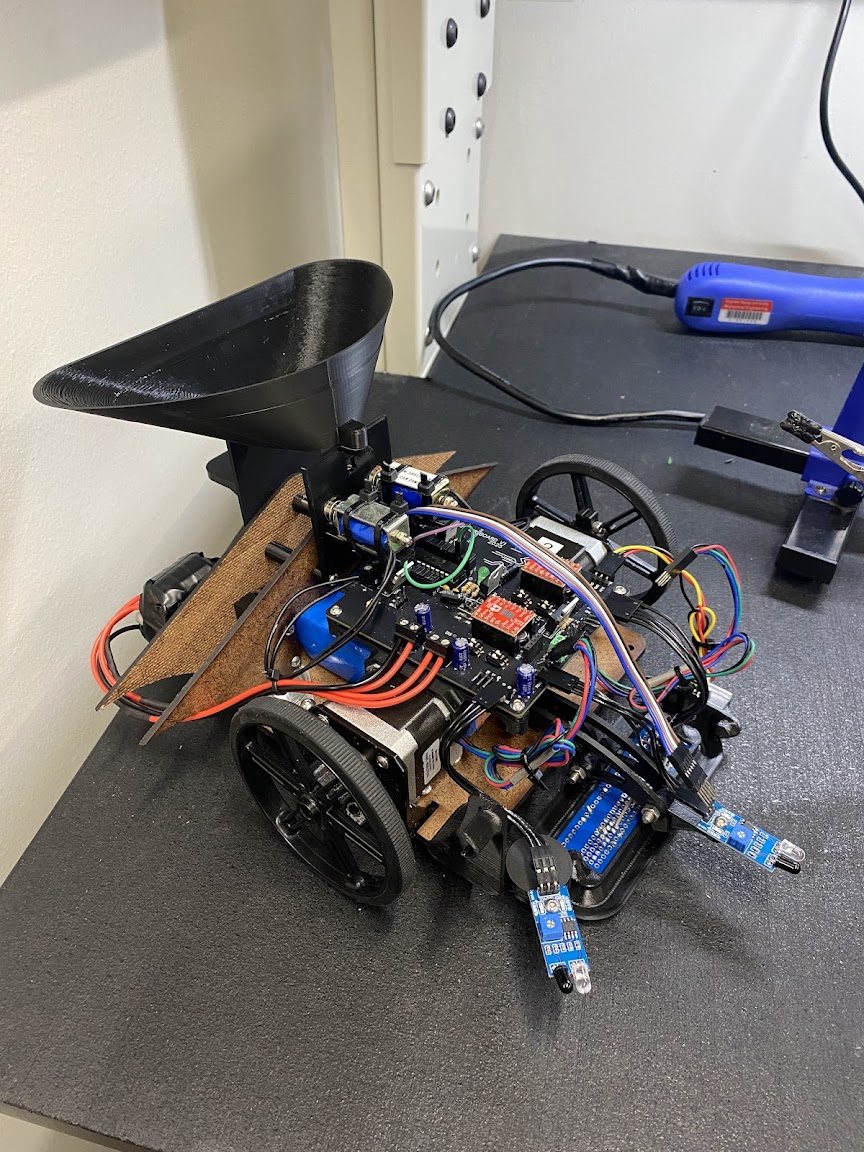

The finished autonomous robot
The finished autonomous robot
